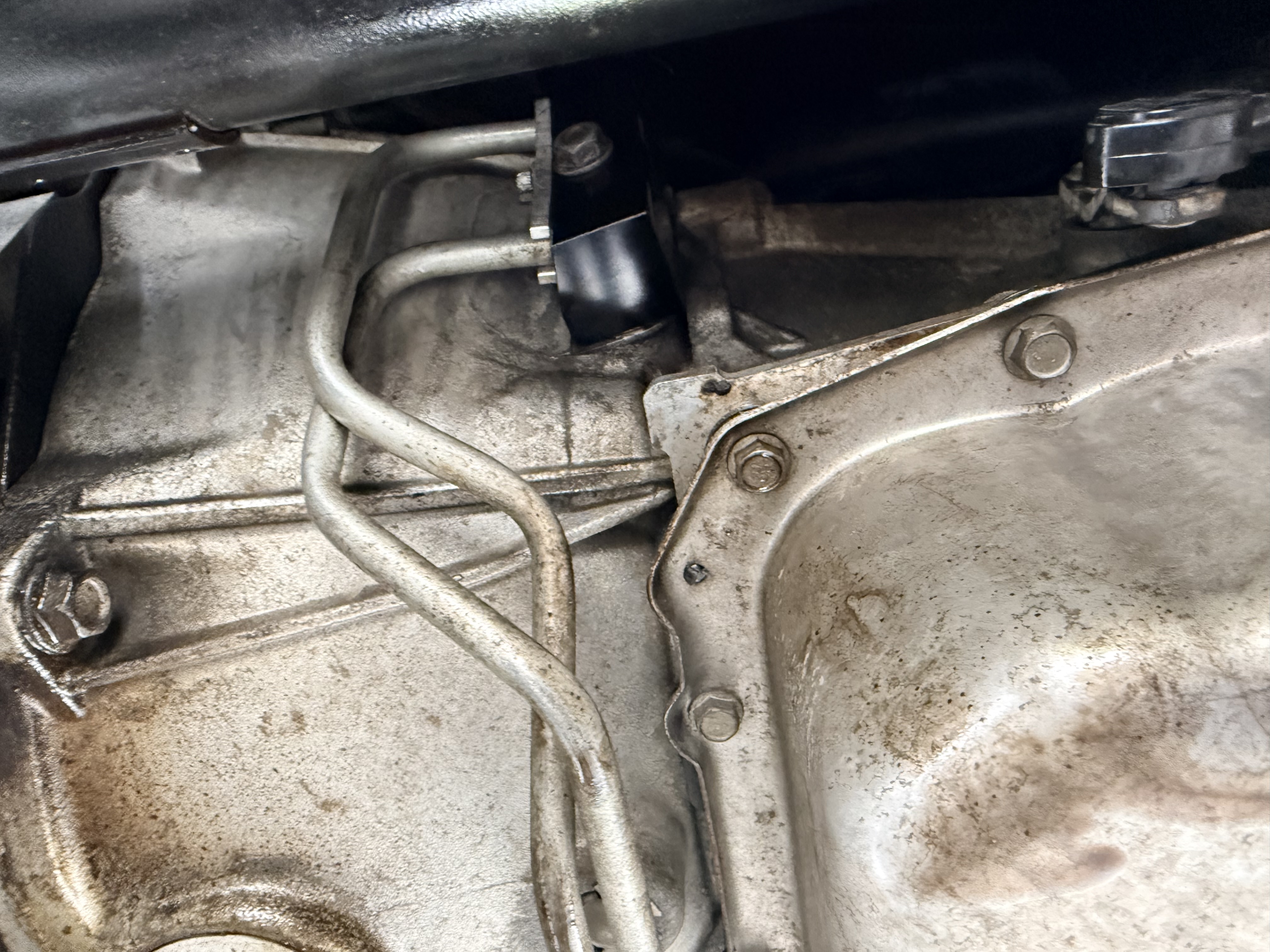

2018 Silverado transmission cooler thermal valve.

TRANSMISSION THERMAL BYPASS VALVES

Thermal Bypassvalve instruction manual

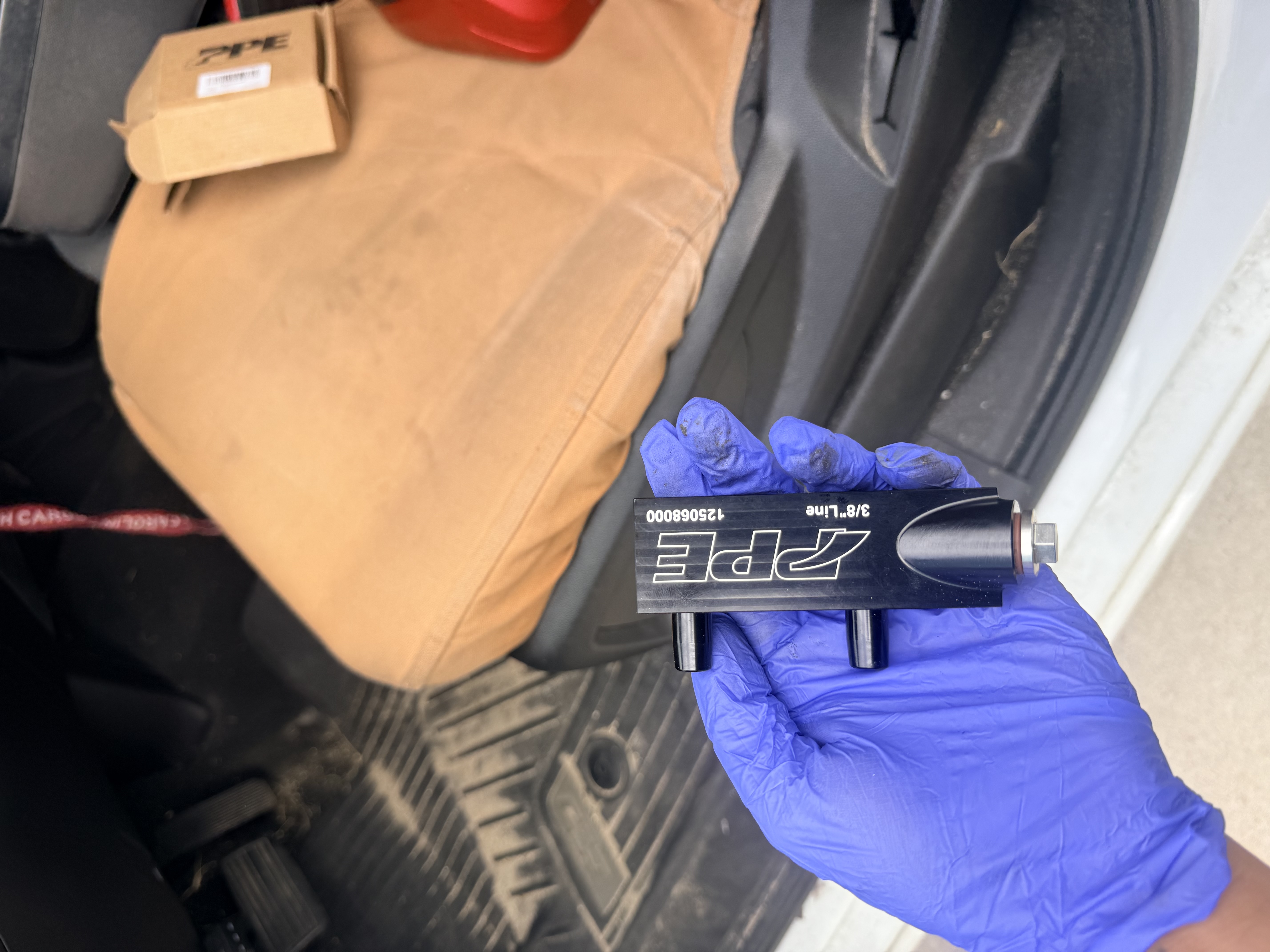

Pope aftermarket thermal bypass valve. Note tighten bolt and use thread locker to prevent vibration making it come loose.

Why They Exist, Why They Fail, When to Keep Them & When to Bypass Them

PURPOSE OF THIS MANUAL

Transmission thermal bypass valves are simple components with a surprisingly large effect on transmission temperature, lubrication, torque-converter operation, shift quality, and transmission life.

Thermal Bypassvalve instruction manual

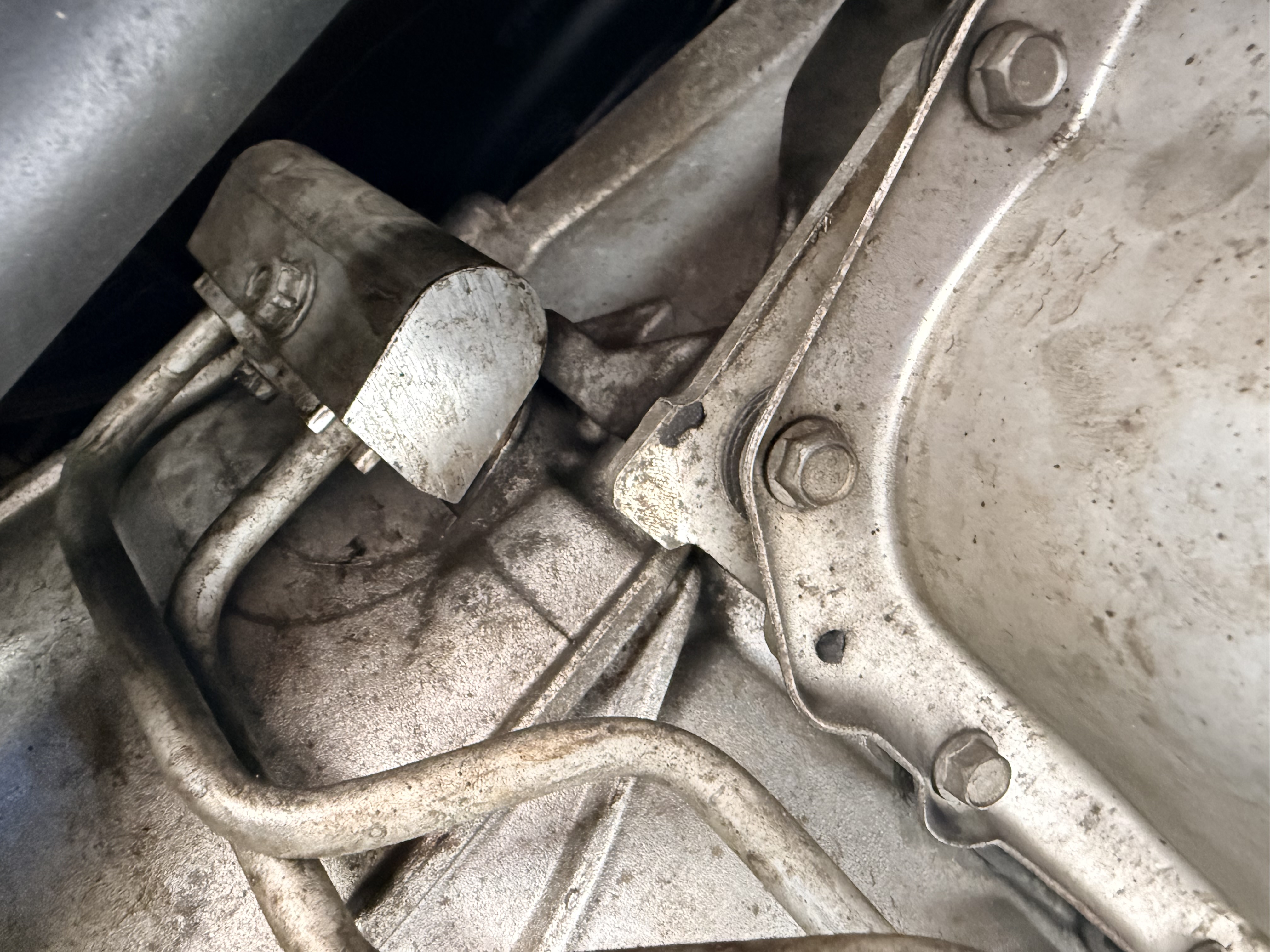

The oem location of the thermal valve.

They are also commonly misunderstood.

Thermal Bypassvalve instruction manual

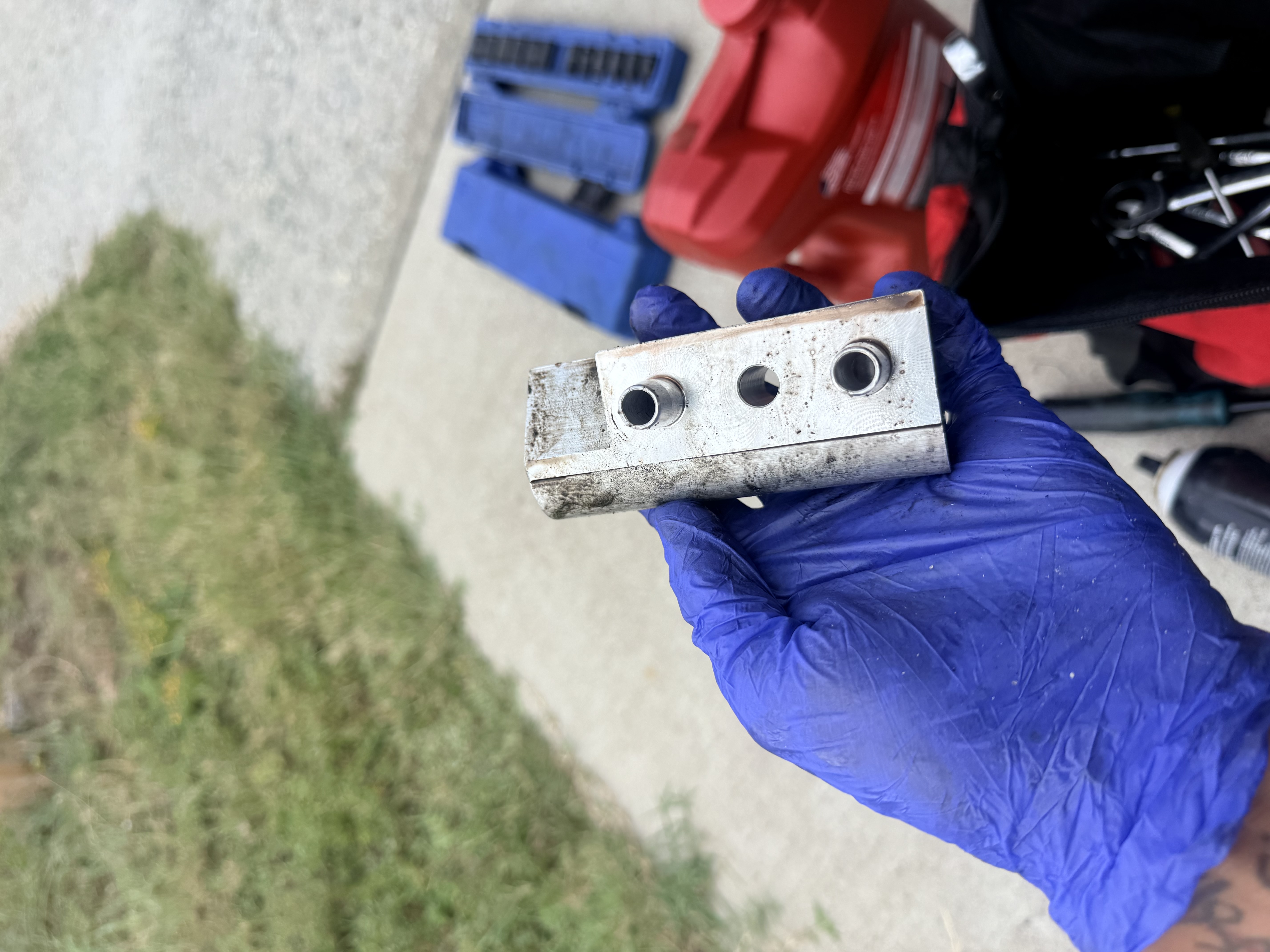

The replacement bypass valve mounted, and ready to go.

A technician may see a transmission operating near 190°F and immediately assume the thermal bypass valve should be removed. Another technician may assume that because the manufacturer installed the valve, it should never be modified.

Neither approach is correct in every application.

The correct decision depends on:

This manual explains how the system works, how it fails, how to diagnose it, and when retaining, replacing, lowering the opening temperature, or eliminating the thermal function makes sense.

⸻

WHAT IS A THERMAL BYPASS VALVE?

A Transmission Thermal Bypass Valve, commonly abbreviated TBV, controls whether transmission fluid is routed through the transmission cooler based primarily on fluid temperature.

Think of it as a thermostat for the transmission cooler circuit.

When the transmission is cold, many designs partially or completely bypass the external cooler.

As transmission temperature increases, the thermal element moves and progressively directs transmission fluid through the cooler.

Many mechanical TBVs use a temperature-sensitive wax element. As the element heats, the material expands and pushes a pin or valve into another position. (Sonnax)

A simplified cooler circuit looks like:

Transmission → TBV → Cooler → Transmission

When cold:

Transmission → TBV → Transmission

When hot:

Transmission → TBV → Cooler → Transmission

Real hydraulic circuits can be considerably more complicated because cooler flow may also provide lubrication to bushings, planetary assemblies, converter circuits, and other internal components.

⸻

  1. THERMAL BYPASS VS. PRESSURE BYPASS

This distinction is critical.

A thermal bypass valve responds primarily to temperature.

A pressure bypass or pressure-relief valve responds to restriction or hydraulic pressure.

They are not interchangeable.

Thermal bypass

Its job is temperature management.

Cold fluid may bypass the cooler.

Hot fluid is directed through the cooler.

Pressure bypass

Its job is hydraulic protection.

Imagine a transmission cooler becoming partially plugged with clutch material or contaminated fluid.

If the pump continues forcing fluid against that restriction, cooler pressure can rise substantially.

A pressure bypass provides another path for the fluid.

Some assemblies contain both functions in one housing.

That means completely gutting an assembly because you want full-time cooler flow can accidentally remove the system that protects the transmission when the cooler becomes restricted.

Some aftermarket eliminator designs intentionally remove the thermal function while retaining pressure-relief protection for this reason. (Sonnax)

SHOP RULE

Never modify a cooler bypass assembly until you know exactly which hydraulic functions are contained inside it.

⸻

  1. WHY MANUFACTURERS USE THERMAL BYPASS VALVES

A common misconception is:

“Cooler transmission fluid is always better.”

It isn’t that simple.

Modern transmissions are designed around a temperature window.

Manufacturers intentionally warm transmission fluid for several reasons.

Faster warm-up

Cold ATF is significantly more viscous than warm ATF.

Allowing the transmission to reach operating temperature faster reduces drag and allows the hydraulic system to behave closer to the conditions for which it was calibrated.

Shift strategy

Modern transmissions can alter shift strategy according to temperature.

Depending on the system, temperature may influence:

Sonnax specifically notes that late-model transmissions can use temperature when determining shift programming, pressure rise, and torque-converter clutch operation. (Sonnax)

Fuel economy

Thinner, properly warmed fluid creates less parasitic drag.

That contributes to improved efficiency.

Emissions strategy

Faster powertrain warm-up also helps manufacturers meet efficiency and emissions requirements.

Condensation management

A transmission that never reaches adequate temperature can retain moisture longer than a transmission that regularly reaches normal operating temperature.

Controlled operating temperature

The TBV isn’t simply there to make the transmission hot.

It is intended to help get the transmission into its engineered operating range and then use the cooler to control additional heat.

⸻

  1. WHY THERMAL BYPASS VALVES HAVE A BAD REPUTATION

The concept is sound.

The problem is what happens when the valve doesn’t operate correctly.

A transmission can survive relatively high temperatures for a short period.

It cannot survive indefinitely with little or no cooler flow while pulling a trailer, climbing grades, operating in traffic, or generating substantial converter heat.

TBVs live in hot transmission fluid and are exposed to:

Eventually, some valves stick.

And the worst position for many designs to stick in is cooler bypass.

⸻

  1. FAILURE MODE: STUCK IN BYPASS

This is the failure technicians are usually concerned about.

The transmission gets hot.

The TBV is supposed to open.

It doesn’t.

Instead of going through the cooler, a large portion of the transmission fluid continues circulating internally.

Temperature rises.

Converter temperature rises.

ATF begins degrading.

Clutch and seal life deteriorate.

Eventually the vehicle may develop:

A stuck or partially stroked thermal element can prevent adequate cooler flow even though transmission temperature reported by the scan tool is extremely high. (Sonnax)

⸻

  1. FAILURE MODE: STUCK OPEN / FULL COOLER FLOW

The opposite failure can occur.

The valve may remain in the cooler-flow position.

This usually isn’t as immediately destructive as a no-cooler-flow condition, but it can still cause problems.

Possible symptoms include:

A transmission designed to warm rapidly may behave noticeably differently when forced through a large external cooler continuously.

This becomes particularly important in extremely cold climates.

⸻

  1. PARTIALLY OPEN VALVES

Not every failed valve is completely open or completely closed.

Partial operation can be much more difficult to diagnose.

The valve may:

  1. Begin opening normally.
  2. Stop halfway.
  3. Allow some cooler flow.
  4. Maintain temperature during normal driving.
  5. Become incapable of removing enough heat during towing or sustained load.

The truck may operate perfectly empty but overheat with a trailer.

That does not automatically mean the cooler is too small.

The system may simply not be receiving full cooler flow.

⸻

  1. WHY TRANSMISSION TEMPERATURE ALONE DOES NOT PROVE TBV OPERATION

One of the most common diagnostic mistakes is assuming:

“The scan tool says 200°F, therefore the bypass valve must be open.”

No.

The scan tool tells you what the temperature sensor sees.

It does not prove fluid is flowing through the cooler.

Sonnax specifically warns that transmission-fluid temperature alone does not verify that the thermal valve has completely opened. Actual cooler-flow verification requires examining the cooler circuit itself. (Sonnax)

You need evidence of flow.

⸻

  1. BASIC SHOP DIAGNOSTIC PROCEDURE

STEP 1 — Verify fluid condition

Before blaming the bypass valve, inspect:

A transmission two quarts low can overheat regardless of how well the TBV operates.

⸻

STEP 2 — Scan the vehicle

Monitor at minimum:

Where supported, also watch:

Temperature should be monitored from a cold start through full warm-up.

⸻

  1. COOLER-LINE TEMPERATURE TEST

An infrared thermometer or thermal camera can provide valuable information.

Start the vehicle cold.

Monitor:

As the transmission warms, observe when the cooler circuit begins heating.

Before the TBV opens, one or both external cooler lines may remain comparatively cool depending on system design.

Once the valve opens and flow becomes established, both cooler lines should begin showing evidence of hot fluid circulation.

Normally, under a meaningful heat load:

Cooler inlet = hotter

Cooler outlet = somewhat cooler

The exact temperature difference varies enormously with:

Therefore, don’t diagnose the transmission solely from a specific temperature difference.

You’re primarily looking for evidence of circulation.

⸻

  1. FLOW TESTING

A cooler-flow test is stronger evidence than simply touching the cooler lines.

When proper equipment is available, measure actual transmission cooler flow.

This can expose:

A transmission can have extremely hot fluid and still have poor cooler flow.

Technician principle

Temperature tells you there is heat.

Flow tells you whether the system can remove it.

⸻

  1. DON’T FORGET THE COOLER ITSELF

Before condemning the TBV, inspect everything downstream.

Look for:

GM has specifically documented transmission-overheat diagnostics where cooler-line deformation or a TBV can cause the concern. (NHTSA)

⸻

  1. THE “JUST ADD ANOTHER COOLER” MISTAKE

More cooling capacity isn’t useful if fluid cannot move through it.

Adding another cooler in series also adds restriction.

In some systems, excessive restriction can actually reduce cooler flow enough to create another problem.

Sonnax has documented situations where adding additional cooler restriction reduced measured flow. (Sonnax)

Therefore:

Never treat transmission temperature exclusively as a cooler-size problem.

Check flow first.

⸻

  1. BENCH TESTING A THERMAL ELEMENT

Some mechanical thermal elements can be tested outside the vehicle.

A controlled container of heated fluid and an accurate thermometer can be used.

The objective is to watch the element as temperature increases.

You’re looking for:

Do not use an open flame.

Do not assume every valve should open at the same temperature.

Thermal specifications vary by transmission.

Sonnax notes common thermal elements may operate in ranges around 125–135°F, but the actual specification depends on the application. (Sonnax)

⸻

  1. GM CASE STUDY: WHY APPLICATION DATA MATTERS

GM provides an excellent example of why technicians should never assume every TBV operates at the same temperature.

GM’s earlier 6L80/6L90 thermal bypass design could be fully open around:

194°F / 90°C

GM later released a revised TBV with a full-open temperature of:

158°F / 70°C

The revised valve is identified with a “70” marking. (NHTSA)

That is a 36°F difference in full-open temperature.

The manufacturer itself therefore moved certain applications toward earlier cooler operation.

But even within GM’s transmission family, the numbers differ.

A later GM bulletin lists examples including:

(NHTSA)

LESSON

There is no universal magic TBV temperature.

Look up the transmission.

Look up the vehicle.

Look up the production year.

Look up the latest service information.

⸻

  1. WHY WOULD YOU REMOVE THE THERMAL FUNCTION?

There are legitimate reasons.

Severe towing

A truck spending most of its life towing may generate heat much faster than a commuter vehicle.

Earlier cooler circulation can increase thermal reserve.

Heavy commercial operation

Examples include:

Hot climates

Vehicles operating primarily in extremely warm environments are less vulnerable to overcooling.

Known TBV failure pattern

If a transmission family is known for thermal elements sticking in bypass, an engineered full-flow solution can eliminate that failure point.

Performance applications

Higher engine output usually means more potential converter and transmission heat.

Repeated transmission overheating

If diagnosis confirms inadequate cooler flow specifically because of TBV operation, changing the cooler strategy may solve the root cause.

⸻

  1. WHY WOULDN’T YOU REMOVE IT?

Deleting a TBV shouldn’t be automatic.

Reasons for retaining thermal control include:

Cold climates

Full-time cooler circulation through a large cooler can dramatically increase warm-up time.

Daily-driver operation

A lightly loaded commuter may receive little benefit from permanent full cooler flow.

Calibration considerations

Some late-model transmissions use temperature to alter shift and converter strategy.

Changing normal operating temperature can influence how frequently the transmission operates in certain strategies. (Sonnax)

Warranty considerations

A modified cooler-control system may complicate manufacturer warranty claims.

Combined thermal/pressure assemblies

If the modification also disables cooler pressure protection, you may create a more serious problem than the one you solved.

Unknown transmission condition

Installing a bypass delete does not repair:

Modification is not diagnosis.

⸻

  1. LOWER-TEMPERATURE TBV VS. FULL DELETE

These should be treated as two different strategies.

OPTION 1 — Factory thermal strategy

Best for:

Advantages:

Disadvantage:

The thermal element remains another mechanical component capable of failure.

⸻

OPTION 2 — Lower-temperature TBV

This is often the best compromise.

The transmission still receives thermal control, but cooler circulation begins sooner.

Advantages:

GM’s revised lower-temperature 6L80/6L90 valve is a real-world example of this approach. (NHTSA)

⸻

OPTION 3 — Full-time cooler flow

The thermal function is eliminated.

Advantages:

Disadvantages:

Some aftermarket eliminators are specifically engineered to maintain pressure-relief functionality while eliminating thermal bypass operation. (Sonnax)

That is far different from simply gutting the factory housing.

⸻

  1. SHOP POLICY ON “BYPASS DELETES”

A professional shop should not automatically tell every customer:

“We delete these on every truck.”

The proper procedure is:

Diagnose the vehicle.

Then determine:

A. Is the TBV malfunctioning?

B. Is the factory opening temperature unsuitable for the vehicle’s use?

C. Is an updated OEM valve available?

D. Is a lower-temperature valve available?

E. Does a full-flow kit retain required pressure-bypass protection?

F. What climate does the vehicle operate in?

G. Is the vehicle towing or operating heavily enough to justify the modification?

That is the difference between modifying parts and engineering a repair.

⸻

  1. TRANSMISSION FLUID LEVEL AND THE TBV

TBV operation can even affect fluid-level service procedures.

Why?

Because until the valve opens, portions of the cooler circuit may not be completely charged with transmission fluid.

GM has issued procedures for certain applications requiring technicians to get the TBV open before establishing the final fluid level.

On affected vehicles using the older high-temperature valve, GM instructed technicians to first get the transmission temperature high enough to open the cooler circuit, then allow the transmission to return to the required fluid-level-check temperature. (NHTSA)

SHOP RULE

Never invent a universal transmission-fluid checking temperature.

Follow the service procedure for the exact transmission.

⸻

  1. POST-REPAIR PROCEDURE

After TBV replacement or modification:

  1. Verify fluid level.

Follow the manufacturer procedure.

  1. Clear applicable codes.
  1. Monitor transmission temperature from cold.
  1. Verify cooler flow.

Do not assume the new part works simply because it is new.

  1. Road test.

Test:

Where appropriate and safe, reproduce the customer’s towing/load conditions.

  1. Monitor TCC slip.

A converter creating excessive heat can make a properly functioning cooling system appear inadequate.

  1. Recheck leaks.

Inspect every disturbed cooler connection.

  1. Recheck fluid level.

Especially if the cooler circuit was drained.

⸻

  1. WHEN THE TRANSMISSION STILL RUNS HOT AFTER A TBV REPAIR

Don’t immediately install a larger cooler.

Continue diagnosis.

Check:

Torque converter

Excessive converter slip generates enormous heat.

TCC clutch

A slipping lockup clutch continually converts energy into heat.

Cooler restriction

Verify flow.

Radiator

If transmission cooling is integrated into the radiator, engine-cooling performance matters.

Cooling fans

Poor airflow affects both engine and transmission heat exchangers.

Pump

Insufficient hydraulic flow affects lubrication and cooling.

Fluid level

Both underfilling and overfilling can create temperature problems.

Internal transmission damage

A slipping clutch pack generates heat.

Driving conditions

Large tires, incorrect gearing, extreme towing weight, high engine output, and prolonged converter-unlocked operation all increase heat generation.

⸻

  1. HEAT IS SOMETIMES THE SYMPTOM — NOT THE FAILURE

This deserves emphasis.

If the transmission reaches 230°F, adding more cooling may lower the temperature.

But you still need to know why it created that heat.

Suppose the converter clutch is slipping.

Installing a massive cooler may make the transmission temperature appear better.

The converter clutch is still slipping.

Eventually it fails anyway.

Cooling is not a substitute for diagnosing heat generation.

⸻

  1. HOW TO READ COOLER LINE BEHAVIOR

CONDITION A

Transmission hot + cooler inlet cold

Suspect little or no cooler flow.

Possible:

CONDITION B

Cooler inlet hot + outlet considerably cooler

Likely heat transfer occurring.

Verify actual flow before making conclusions.

CONDITION C

Both lines extremely hot with little temperature difference

Possible:

CONDITION D

Transmission remains unusually cold

Possible:

⸻

  1. CONTAMINATION AND TBV FAILURE

A failed transmission creates debris.

That debris enters the cooler circuit.

The cooler circuit contains narrow passages.

The TBV contains moving parts.

Therefore, after significant internal transmission failure, the technician needs to think beyond replacing the transmission itself.

Inspect or service as appropriate:

Otherwise contaminated cooler components can damage the replacement transmission.

⸻

  1. THE DANGEROUS CYCLE

A common failure progression looks like this:

Transmission begins producing debris

↓

Debris reaches TBV

↓

TBV movement becomes restricted

↓

Cooler flow decreases

↓

Transmission temperature increases

↓

Fluid oxidizes

↓

Lubrication quality decreases

↓

Clutches/bushings deteriorate faster

↓

More contamination is produced

↓

Transmission failure accelerates

This is why cooler-system diagnosis matters during major transmission repair.

⸻

  1. TBV DIAGNOSTIC DECISION TREE

Vehicle has transmission-overheat complaint

Check fluid level and condition.

↓

Fluid correct?

NO → Correct level/leak/incorrect fluid first.

YES → Continue.

↓

Check transmission codes and converter operation.

↓

Bring transmission to TBV operating range according to service information.

↓

Confirm cooler flow.

↓

No/low cooler flow

Inspect:

Good cooler flow

Investigate:

⸻

  1. SHOP RECOMMENDATION MATRIX

Stock commuter / cold climate

Preferred approach:
OEM or updated OEM thermal valve.

Stock commuter / warm climate

Preferred approach:
OEM revised valve or proven lower-temperature valve where applicable.

Regular towing

Preferred approach:
Lower-temperature TBV or engineered full-flow solution after diagnosis.

Severe towing / commercial use

Preferred approach:
Consider full-time cooler flow with proper pressure protection and adequate cooler capacity.

Performance vehicle

Preferred approach:
Cooling strategy should be designed around power level, converter behavior, gearing, and expected use.

Existing transmission overheat

Preferred approach:
Diagnose first.

Never prescribe a bypass delete simply because the transmission is hot.

⸻

  1. FIVE TBV MYTHS

MYTH 1

“The cooler should always receive full flow.”

Not necessarily.

OEM systems intentionally regulate temperature.

⸻

MYTH 2

“200°F means the transmission is overheating.”

Not automatically.

Many transmissions are designed to operate in relatively warm temperature ranges.

Always use application-specific information.

⸻

MYTH 3

“Deleting the TBV can’t hurt anything.”

False.

Poorly designed modifications may affect cold operation, shift strategy, hydraulic behavior, or pressure protection.

⸻

MYTH 4

“A bigger transmission cooler fixes overheating.”

Only if inadequate heat rejection is actually the problem.

A restricted cooler circuit or slipping converter can remain the root cause.

⸻

MYTH 5

“If the temperature sensor says it’s hot, the cooler must be flowing.”

False.

Transmission temperature does not prove cooler circulation. (Sonnax)

⸻

  1. THE BEST SHOP MENTALITY

Do not ask:

“Should we delete the thermal bypass valve?”

Ask:

“What temperature-control strategy makes sense for this specific vehicle?”

Those are very different questions.

A good technician doesn’t automatically keep the factory system.

A good technician doesn’t automatically delete it either.

The technician determines:

Then the repair is chosen.

⸻

  1. FINAL TECHNICIAN RULES

Rule 1:
Know the difference between thermal bypass and pressure bypass.

Rule 2:
Never assume scan-tool temperature proves cooler flow.

Rule 3:
Verify fluid level using the exact manufacturer procedure.

Rule 4:
Check the cooler lines and cooler before condemning the transmission.

Rule 5:
Don’t blindly add cooler capacity to compensate for an unidentified heat source.

Rule 6:
Never gut a combined bypass assembly without knowing what hydraulic protection is being removed.

Rule 7:
Lower-temperature thermal control is often a better compromise than a complete delete.

Rule 8:
Full-time cooling can make sense for heavy-duty applications when engineered correctly.

Rule 9:
Cold operation matters just as much as hot operation.

Rule 10:
Treat excessive transmission temperature as a symptom until the actual source of the heat has been proven.

TECHNICAL REFERENCES

This manual’s general operating principles are supported by transmission technical information from Sonnax regarding thermal cooler-control valves, pressure bypass systems, flow diagnosis, and full-flow modifications. (Sonnax)

GM service information provides real-world examples of application-specific TBV temperatures, including the revised lower-temperature 6L80/6L90 bypass valve and differing TBV specifications across GM 6-, 8-, and 10-speed transmissions. (NHTSA)

Always use current OEM service information for the exact VIN, transmission, fluid specification, test temperature, torque specification, and cooler-flow procedure being serviced.

Talk to us about your vehicle ↗
