Starting Fresh: A Post-Purchase Inspection on a 2008 Hummer H3

We recently had the opportunity to check over this beautiful 2008 Hummer H3 with the 3.7L inline-five for a good customer of ours who had recently purchased it.

The original request was straightforward: perform an oil and filter change, look into a lean code, and investigate an exhaust sound the owner suspected was coming from the donut gasket.

Rather than simply clearing the check-engine light or replacing whatever part appeared in a code description, we used the opportunity to give the H3 a proper inspection and determine what the vehicle was actually telling us.

Starting With the Lean Code

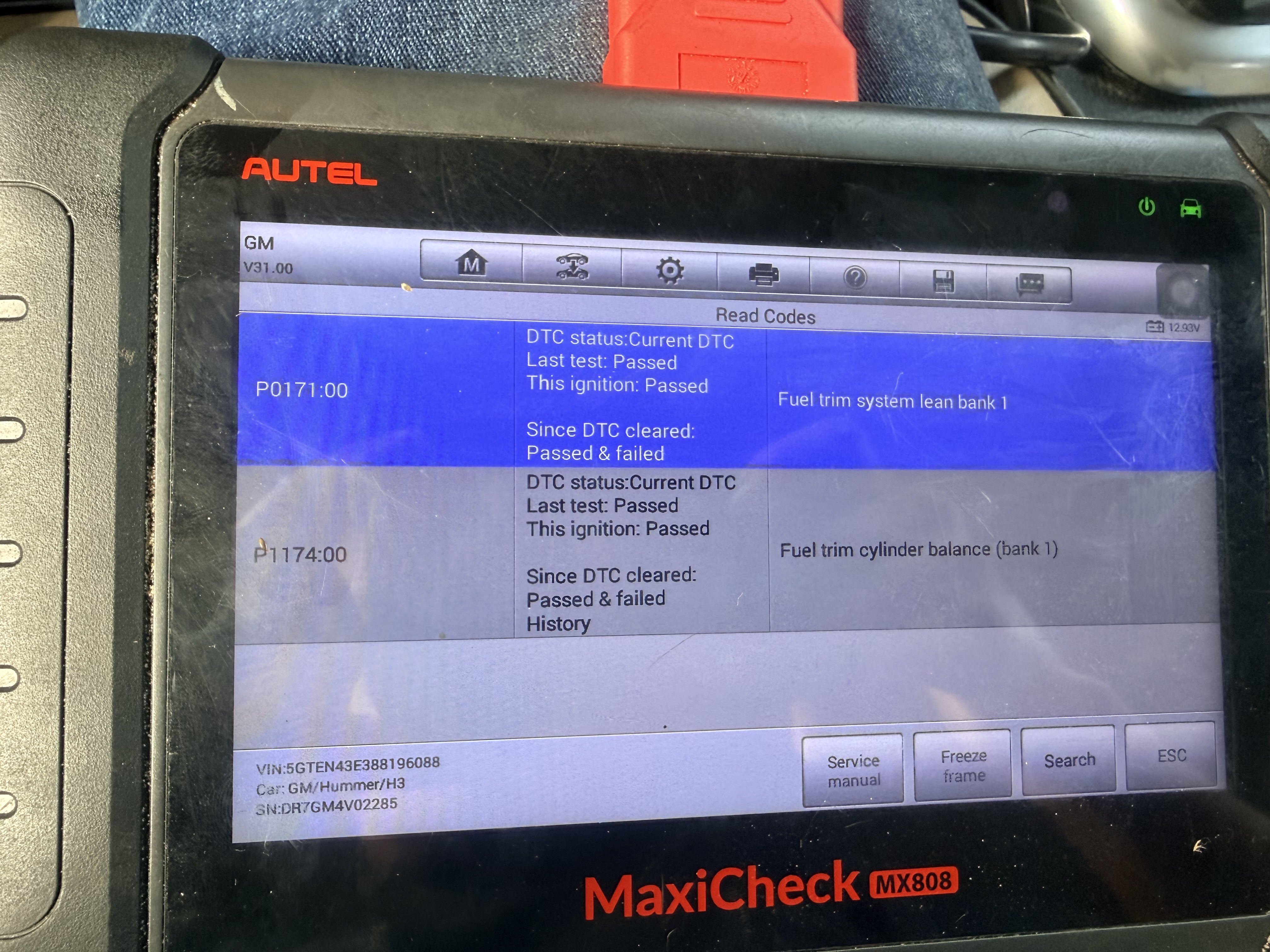

Our scan showed two important fuel-control faults:

P0171 — Fuel Trim System Lean Bank 1
P1174 — Fuel Trim Cylinder Balance Bank 1

A P0171 is commonly associated with a vacuum leak, but that’s only one possible cause. A lean condition can involve unmetered air, EVAP operation, fuel delivery, exhaust leaks and a bunch of other factors.

That’s why the next step wasn’t ordering parts, we had to look at the vehicles live data, and figure out what the vehicle is really saying.

With the H3 fully warmed up and operating, we recorded approximately +2% short-term fuel trim and +3% long-term fuel trim.

Those numbers were actually quite reasonable during our testing.

That tells us something valuable: whatever caused the lean code wasn’t presenting itself as a large, constant lean condition while we were testing the vehicle. Intermittent problems require a little more digging.

Smoke Testing Instead of Guessing

Since the data wasn’t telling me much other than random codes, We decided to smoke test the system to look for leaks.

Despite the H3 having stored EVAP leak related faults, we did not find an external EVAP leak during the smoke test.

That’s a perfect example of why a trouble code shouldn’t automatically be taken literally as a failed hose or physical leak.

The EVAP system has valves, sensors and self-tests. If the system can’t control or hold pressure when the computer expects it to, the ECM can detect a fault even though a smoke machine doesn’t reveal a cracked hose.

Testing the Purge Valve With the Scanner

We had One particularly useful which was

P0496 — EVAP Flow During Non-Purge

The purge valve controls when gasoline vapors from the charcoal canister are introduced into the engine.

Our Autel scanner allows us to go beyond simply reading the code. We can command the purge valve ourselves and watch how the system responds.

We commanded the purge valve through different operating positions and found that its response wasn’t behaving as expected.

That gave us a much stronger reason to recommend the purge valve than simply saying, “It has an EVAP code.”

A purge system problem can contribute to rough starting, inconsistent idle, fuel-vapor odors, EVAP faults and abnormal fuel-control behavior.

Confirming the Exhaust Noise

The customer had already noticed an exhaust sound and suspected the donut gasket.

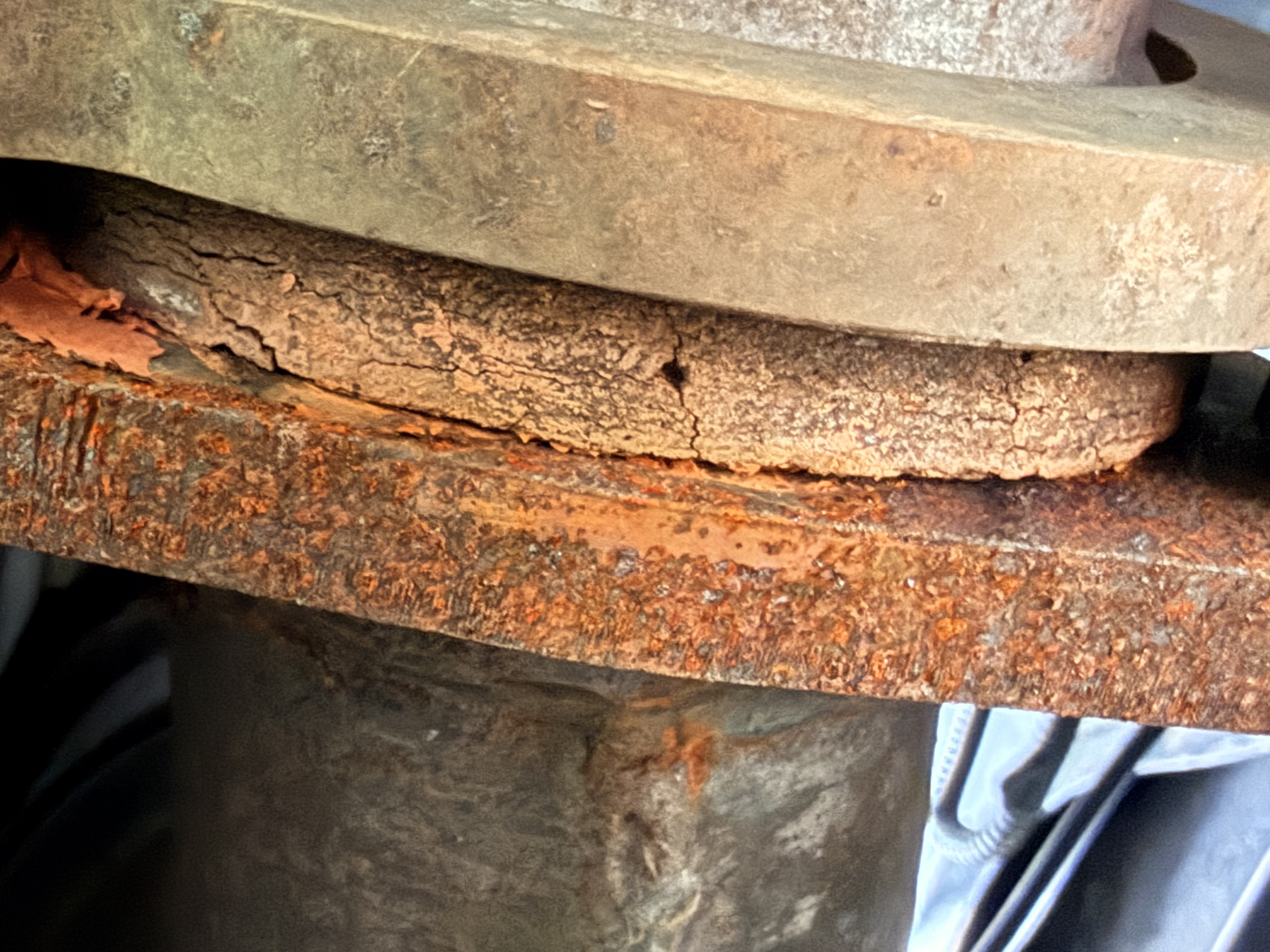

Our testing confirmed a small leak around the exhaust manifold area and leakage around the exhaust flange/donut gasket.

That finding becomes even more relevant because the H3 also stored:

P0420 — Catalyst System Efficiency Below Threshold

It’s easy to see P0420 and immediately assume the vehicle needs a catalytic converter.

That’s not how we approach it.

The ECM evaluates catalytic converter operation using information from the oxygen sensors. When there are known exhaust leaks and unresolved fuel-control issues, those problems should be addressed before an expensive catalytic converter is condemned.

Repair what we know is wrong, reset the system, drive it and reevaluate.

The Cooling System Became the Bigger Priority

While inspecting the H3, we found something that concerned us more than the check-engine light:

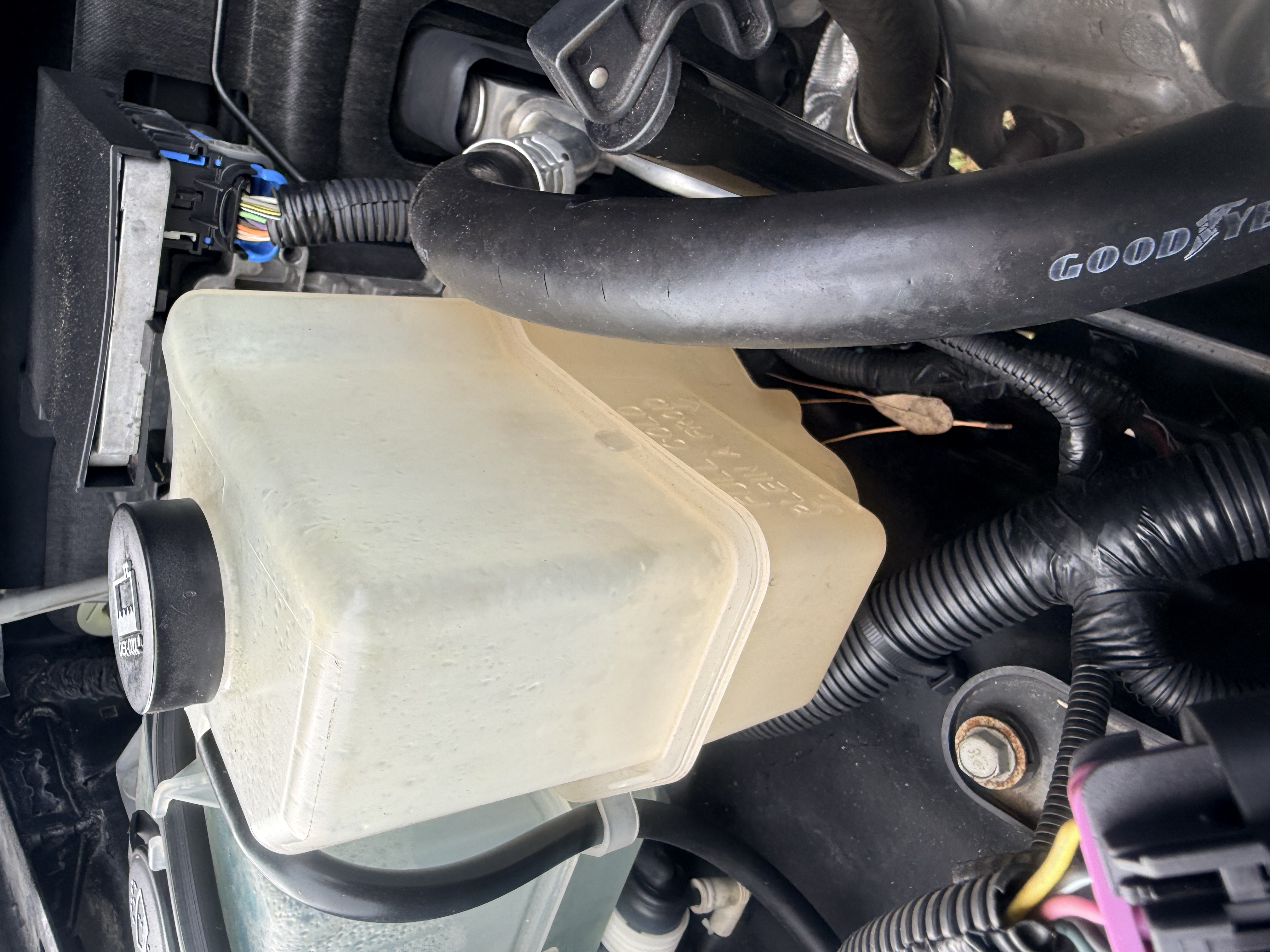

The coolant/degas reservoir was empty.

We then checked the radiator itself. Initially, the fluid level appeared extremely low. As the engine ran, fluid became visible and began rising.

The fluid present also appeared much more like water than a proper DEX-COOL mixture.

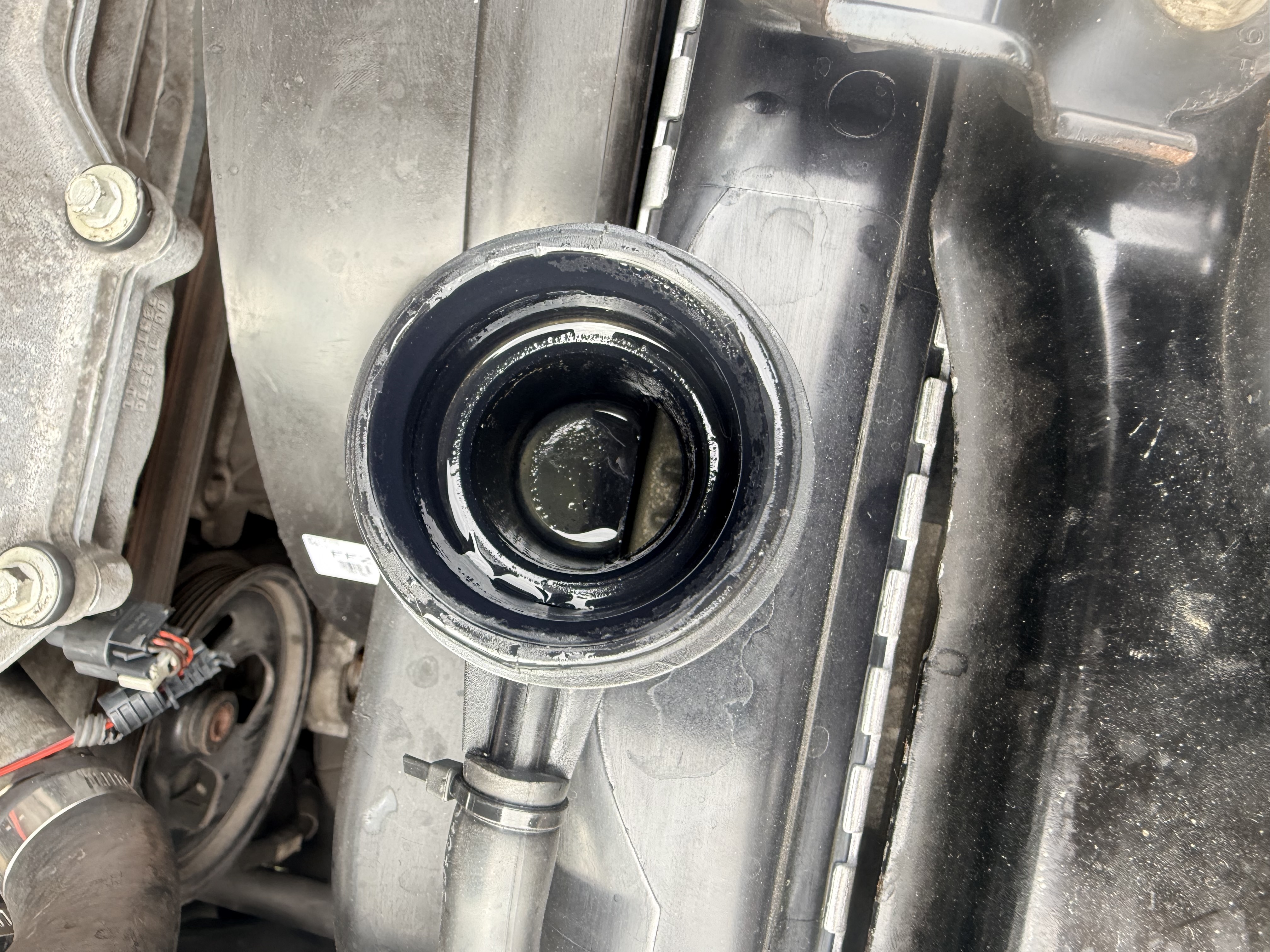

The photograph of the radiator filler neck tells part of the story. There is visible discoloration and residue inside the neck, which is another reason we don’t want to simply pour coolant on top and call the system serviced.

During our attempted road test, we monitored coolant temperature with the scanner and noticed it beginning to rise beyond where we were comfortable continuing the test.

So we turned around.

Continuing to drive an engine just to see whether it eventually overheats doesn’t provide enough diagnostic value to justify risking engine damage.

The H3 also stored:

P0116 — Engine Coolant Temperature Sensor Performance

Again, that doesn’t automatically mean it needs a coolant-temperature sensor.

An empty reservoir, low coolant level, improper coolant concentration, trapped air, thermostat behavior, circulation problems and the temperature sensor itself can all influence what the ECM sees.

The sensible starting point is restoring the cooling system to a known-good baseline: properly flush it, refill it with the correct DEX-COOL mixture, bleed the air from the system and then monitor temperature and circulation again.

A Quick Note About the PCV System

While investigating a lean condition, crankcase ventilation also deserves attention.

This 3.7L doesn’t have the traditional removable PCV valve many people expect to find.

Instead, it uses a fixed passage in the crankcase ventilation system.

That doesn’t mean the PCV system can never cause trouble. The passages can become restricted with oil deposits or carbon, and the associated hoses can leak.

The difference is that we inspect the system and its airflow, rather than automatically replacing a conventional PCV valve.

Looking Underneath Matters Too

Because this visit also included an oil change, we had the H3 where we could inspect underneath it.

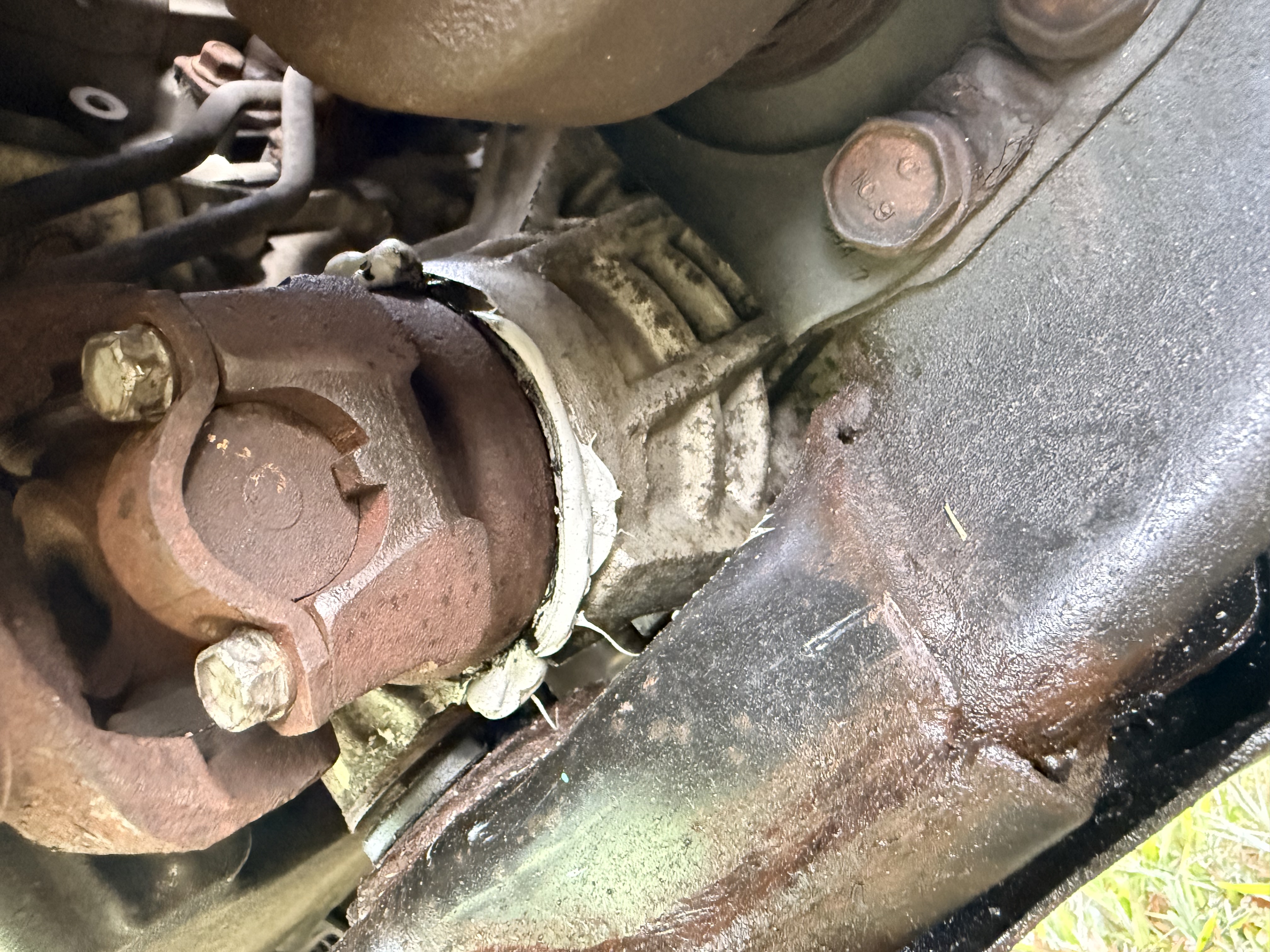

We noticed leakage around the front differential output area where the driveshaft connects. There was also evidence that sealant had previously been applied externally around the area.

That doesn’t mean the differential is damaged.

It means the leak should be addressed and the fluid level checked before a small seal problem has the opportunity to become a lubrication problem.

And that’s exactly why routine services are valuable opportunities to look over the rest of a vehicle.

Where Do You Start When a Vehicle has Many Codes?

Not by replacing everything on the scanner screen.

For this H3, our first recommendations were deliberately focused:

Correct the cooling system and establish the proper coolant level and mixture.

Replace the purge valve that failed our commanded testing.

Repair the confirmed exhaust donut-gasket & manifold leak.

Then clear the appropriate codes, bring the vehicle back to operating temperature, road-test it and see what returns.

That’s when the next round of data becomes much more meaningful.

The Point Isn’t Finding Problems, It’s Establishing a Baseline

When someone buys a used vehicle, a thorough inspection is one of the best ways to understand its true condition and catch existing problems before they turn into larger, more expensive repairs.

This H3 is a beautiful ride. The owner did exactly what makes sense after purchasing something new to them, get the maintenance caught up, investigate the concerns they already noticed, and establish a baseline for the vehicle going forward.

And this Hummer gave us a great example of the difference between reading codes and actually diagnosing them.

A lean code isn’t automatically a vacuum leak.

An EVAP leak code isn’t automatically a cracked hose.

P0420 isn’t automatically a catalytic converter.

P0116 isn’t automatically a coolant-temperature sensor.

The scanner points us in a direction.

Testing tells us where to go next.
